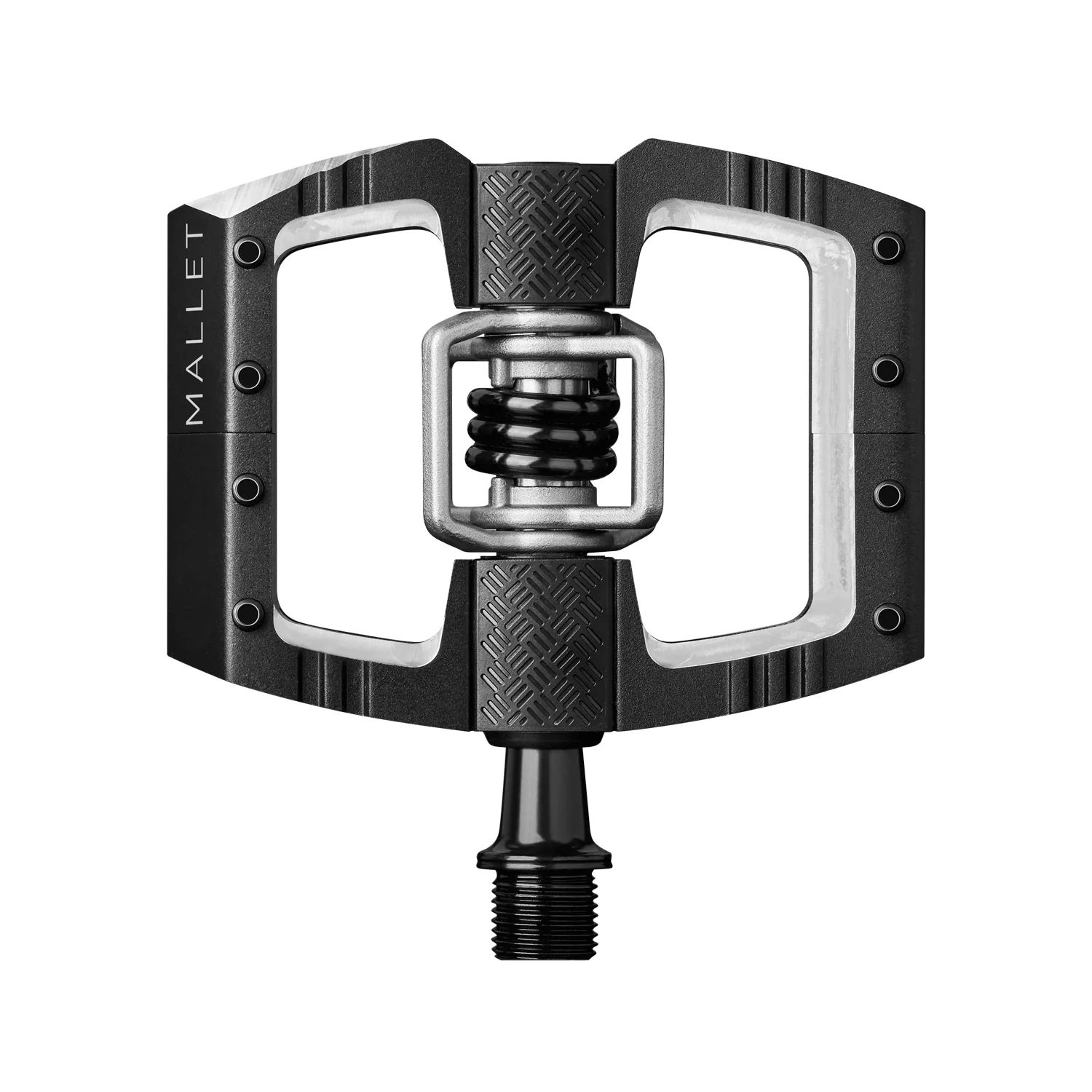

Crank Brothers Mallet DH Pedals Black

Crank Brothers pairs the Mallet DH with a 57mm q factor and a huge 100mm x 78mm platform for extra support at speed. The 4 sided clip in system clears mud fast, and the adjustable traction pins plus customizable float and release angle let you fine tune pedal feel for park laps, race runs, or shuttle days.

Key Features

• Weight: 479g per pair
• Body Dimensions: 100mm x 78mm
• Spindle Length: 57mm
• Traction Pins: 8 adjustable pins per side with 8mm pin length
• Cleat System: 15° / 20° standard release with 6° float
• Body Material: 6061 T6 aluminum
• Spindle Material: Forged SCM 435 chromoly steel
• Wing Material: 17 4PH stainless steel
• Bearing System: Igus LL glide inner bearing with Enduro MAX cartridge outer bearing and double seal system
• Platform Design: Concave platform with ribbed body and chamfered edges for traction and reduced rock strikes
• Pedal Interface: 4 sided entry with customizable traction pad technology and superior mud shedding
