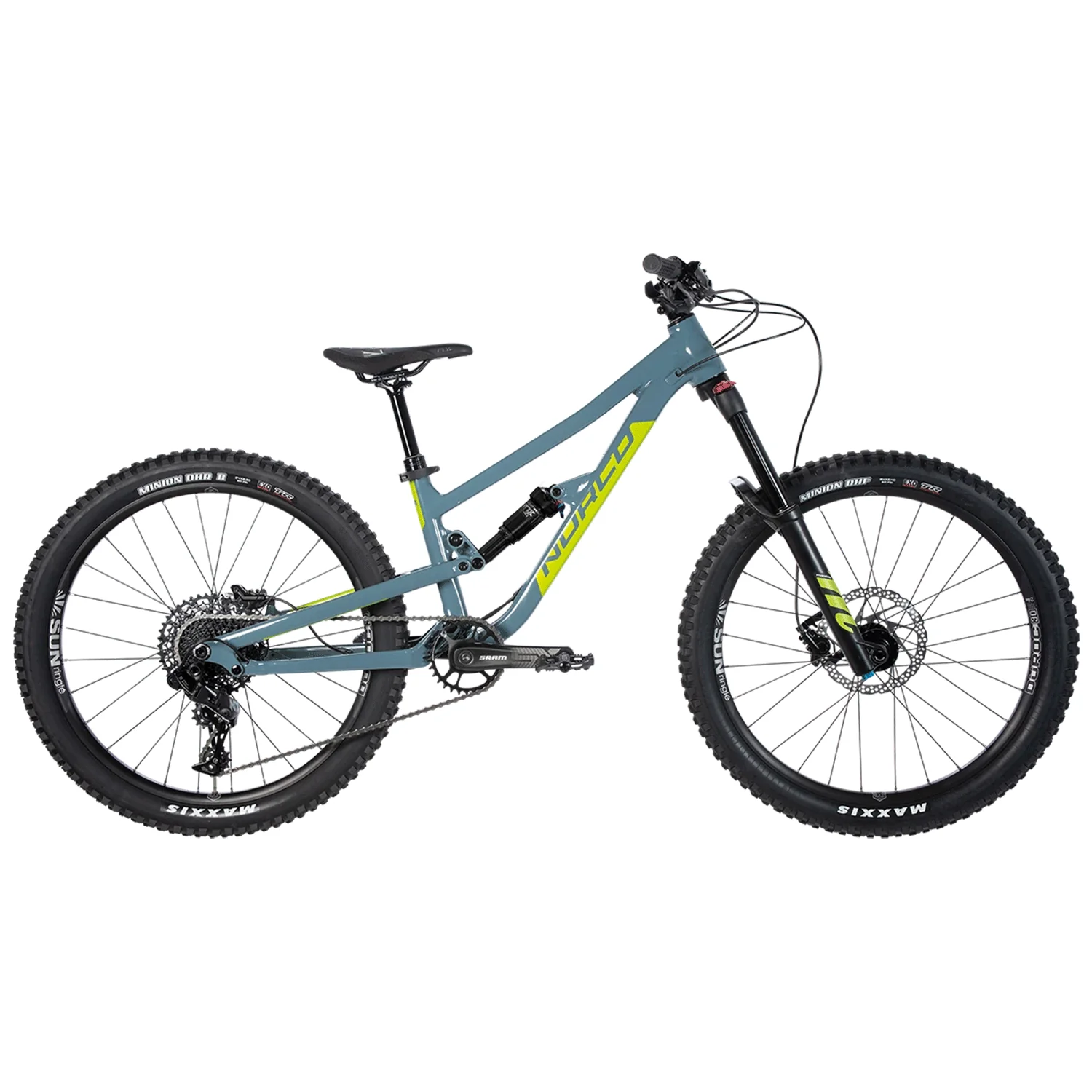

Norco Fluid FS 4.1 Bike 2023
The Fluid FS 1 24 is a youth trail bike built with the same quality and attention to detail as full-size bikes. Its aggressive design and quality parts make it capable of handling demanding trails without needing frequent repairs. The bike's holistic design ensures uncompromised performance, with suspension components specifically built for young riders. Despite its small size, the Fluid FS 1 24 is designed to perform big, with adult-level durability and fit. Overall, this bike is a rad choice for young riders looking to tackle challenging trails.
Specifications
| FRAME | 6061 Alloy Frame, 120mm Travel, tapered headtube, boost axle spacing, ISCG05 |
| FORK | Manitou J-Unit 24", Expert Air, Alloy Steerer, 145mm Travel |
| REAR SHOCK | Fox Performance FLOAT 3-position, SV/EVOL, custom light tune |
| REAR SHIFTER | SRAM NX 11 speed |
| CRANKSET | SRAM SX Eagle 155mm, 30T |
| BOTTOM BRACKET | SRAM PowerSpline |
| CASSETTE | SRAM PG-1130 11-42T |
| CHAIN | SRAM PC-1110 |
| PEDALS | SDG Composite Jr Flat |
| FRONT BRAKE | Shimano BR-MT500 hydraulic, 180mm |
| REAR BRAKE | Shimano BR-MT500 hydraulic, 160mm |
| HANDLEBAR | SDG Kids Alloy, 640mm, 25mm rise, 31.8mm bore |
| STEM | 35mm reach MTB |
| SEATPOST | JD TransX Light Action Dropper, 100mm,1x lever |
| HEADSET | FSA #57 E |
| SADDLE | SDG Fly JR |
| GRIPS | SDG Jr |
| SEATPOST CLAMP | Norco Alloy QR |
| FRONT HUB | Sun Ringle Duroc 30 Kids wheelset, 15x110mm Boost |
| RIMS | Sun Ringle Duroc 30 Kids tubeless ready |
| FRONT TIRE | Maxxis Minion DHF Folding Bead EXO / TR 24x2.40” |
| REAR TIRE | Maxxis Minion DHR II Folding Bead EXO / TR 24x2.30” |
| REAR HUB SKEWER | Sun Ringle Duroc 30 Kids wheelset, 12x148mm Boost |
| REAR HUB SKEWER | 12mm TA |
| FRONT HUB SKEWER | Included with fork |
| SPOKES | Sun Ringle Duroc 30 Kids wheelset |
Information provided by manufacturer
