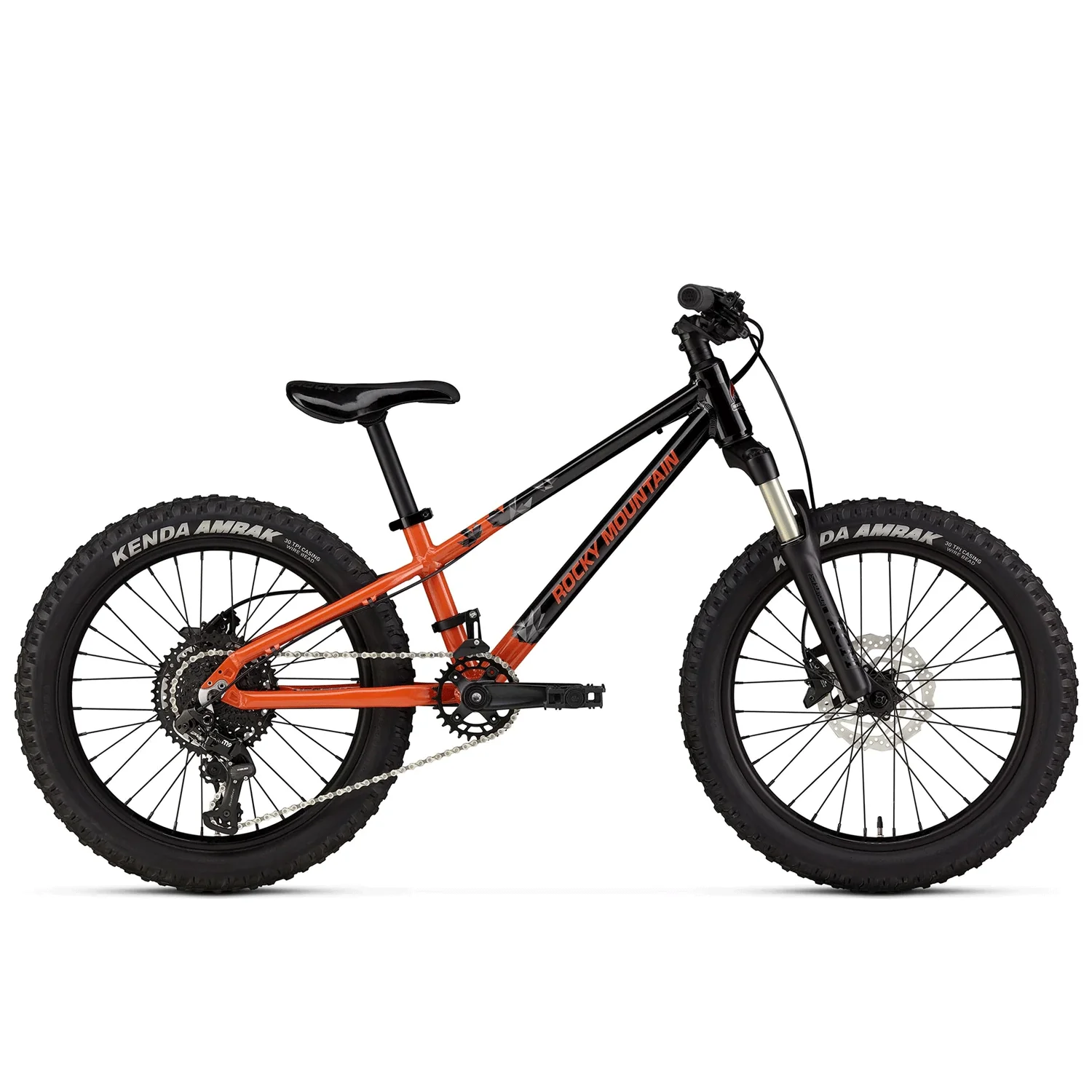

Rocky Mountain Vertex Jr 20 2024 Orange/Black

The Vertex Jr shares similarities with the Soul Jr, but boasts a sturdier build. It is available in two sizes: 20 and 24 inches. Equipped with robust components and wider tires, the Vertex Jr is tailored for young riders who are eager to take on trails ranging from beginner to intermediate level.



Specifications

Frame	Rocky Mountain 6061 SL Alloy | Threaded BB | Zero Stack Headtube | 20" Kid's Geometry Rear Triangle
Fork	Suntour XCM JR Air 80mm
Front Travel	80
Headset	Rocky Mountain | Loose Ball Bearings | 1-1/8" Crown Race
Stem	Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 40mm
Handlebar	Rocky Mountain XC | 600mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips	Rocky Mountain Slide On Kids
Brakes	Shimano MT4100 2 Piston | Resin Pads | F:Shimano RT10 160mm | R:Shimano RT10 160mm
Shifters	SunRace DLM903 Trigger
Rear Derailleur	SunRace RDM903 With Clutch
Cranks & Chainring	Rocky Mountain Microdrive 3PC | 28T |Sram 76mm BCD |Crank Length: 127mm
Bottom Bracket	Sealed Cartridge Bearing
Cassette	SunRace CSM980 11-42T
Chain	KMC X9
Front Hub	Shimano TX505
Rear Hub	Shimano TX505
Spokes	2.0 Stainless
Rims	Rocky Mountain JR25 Tubeless | 32H | Tubeless Compatible - Tape / Valves / Sealant Not Incl
Tires	F: Kenda Amrak 20 x 2.4 // R: Kenda Amrak 20 x 2.4
Seatpost	Rocky Mountain Pivotal 27.2mm
Saddle	Rocky Mountain Pivotal Kids

Information provided by manufacturer
