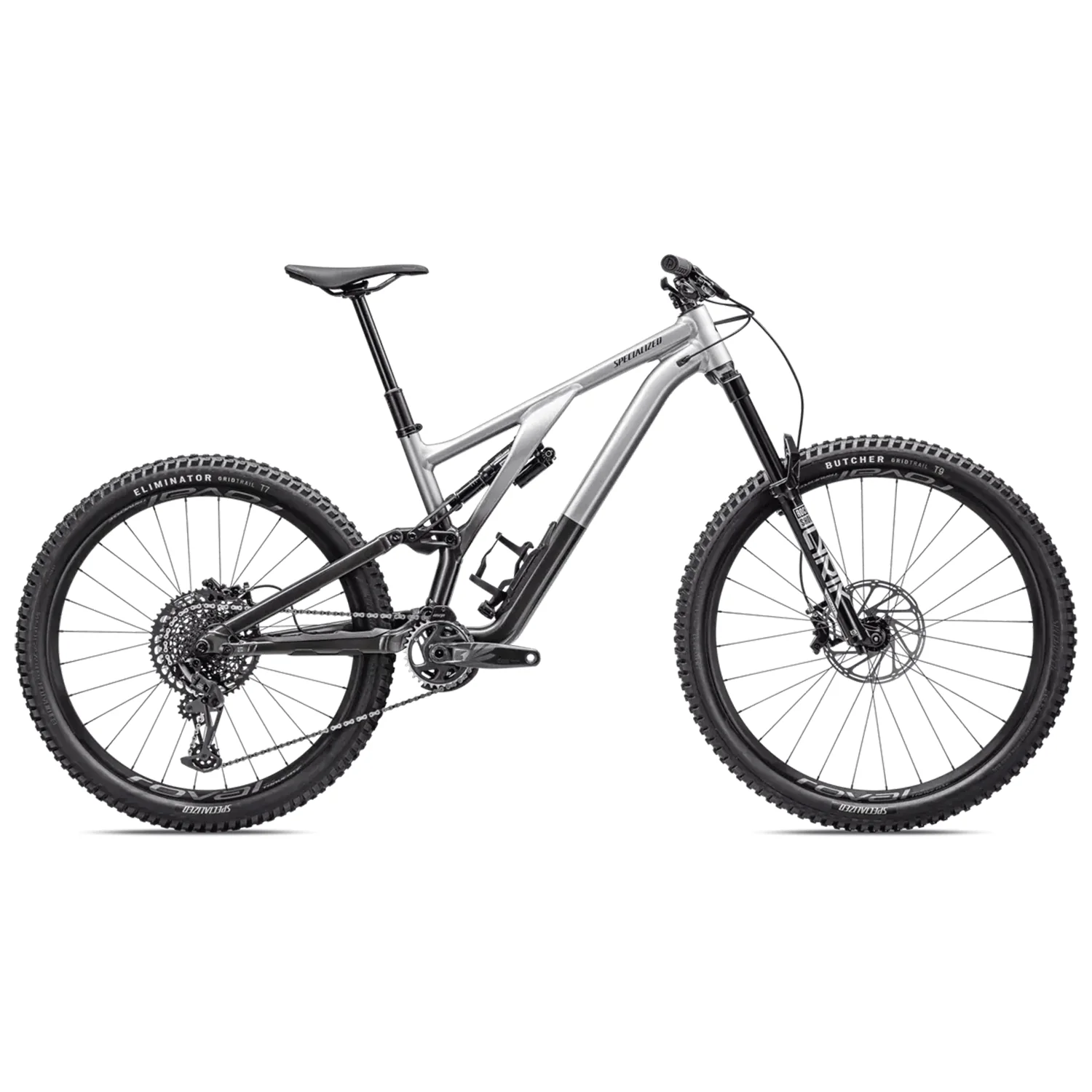

Specialized Stumpjumper Evo Elite Alloy Bike 2023 Silver Dust/Black Tint Carbon

The Stumpjumper EVO Alloy is not your ordinary trail bike; it's built for intense riding with its adjustable head tube angle, 150mm travel, S-Sizing, and SWAT™ Door integration, all housed in a lightweight and durable M5 Alloy frame. The Stumpjumper EVO Elite Alloy is equipped with a robust SRAM GX Eagle 12-speed drivetrain, 30mm-wide alloy wheels, and Rx Tuned RockShox suspension, making it suitable for any rowdy trail. The EVO Elite Alloy also features a unique mullet setup with a 29-inch front wheel and a 27.5-inch rear wheel for enhanced traction and maneuverability. The Stumpjumper EVO's kinematic performance is improved, with increased anti-squat and better bump performance. The S-Sizing geometry is adjustable in six different settings, allowing riders to customize the bike to their preferred riding style. Rider-First Engineered™ frames ensure consistent handling and performance, regardless of rider size. The Stumpjumper EVO also features a SWAT™ door and Bladder, providing extra storage space for essential items and additional water.



Specifications

Seat Binder	Alloy, 38.6mm
Frame	M5 Alloy chassis and rear-end, asymmetrical design, 29/27.5" Trail Geometry with S-Sizing, SWAT™ Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
SWAT	SWAT™ Door integration
Rear Shock	Rock Shox Super Deluxe Ultimate, Rx Trail Tune,RC2T Damper, Hydraulic Bottom Out control , S1:210x50mm, S2-S6:210x55mm
Fork	RockShox Lyrik Ultimate, Charger 3 RC2 W/ButterCups, 15x110mm, 44mm offset, S1: 150mm of travel, S2-S6: 160mm of travel
Grips	Deity Grips
Stem	Deity, 35.0mm
SeatPost	OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm)
Saddle	Bridge Comp, Hollow Cr-mo rails, 155/143mm
Handlebars	Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
Front Brake	SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
Rear Brake	SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
Chainrings	Steel, 30T
Bottom Bracket	SRAM DUB, BSA 73mm, Threaded
Crankset	SRAM GX Eagle Alloy, DUB, 165/170/175mm, 32t
Chain	SRAM GX Eagle, 12-speed
Rear Derailleur	SRAM GX Eagle, 12-speed
Shift Levers	SRAM GX, trigger, 12-speed
Cassette	Sram XG-1275, 12-speed, 10-52t
Rims	Roval Traverse 29 Alloy, 30mm inner width, hand-built, 2Bliss Ready
Spokes	DT Swiss Competition Race
Rear Tire	Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"
Rear Hub	Roval DT Swiss 370, Ratchet LN, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Front Hub	Roval, sealed cartridge bearings, 15x110mm spacing, 28h
Inner Tubes	Standard, Presta Valve
Front Tire	Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Information provided by manufacturer
