Thule Re Vert 4-Bike Vertical Hitch Bike Rack

Rolling into the trailhead with four bikes ready to go just feels easier with the Thule ReVert. Tilt the rack down, roll the bikes into place, and get everyone sorted fast while your tailgate still opens for snacks, pads, or one last coffee before the climb.

Thule pairs the ReVert 4-Bike Vertical Hitch Bike Rack with a dual TiltAssist damper that helps lower and raise the rack even with bikes loaded. It handles wheel sizes from 20 to 29" and carries up to 55lbs per bike, so heavier e-bikes and long wheelbase rigs fit right in for shuttle laps, park days, or full family weekends.

Key Features

• Bike Capacity: 4 bikes
• Load Capacity: 55lbs (25kg) per bike, 220lbs (100kg) max carrier load
• Wheel Compatibility: 20–29" wheels
• Tire Compatibility: Fits tires up to 3" standard, up to 5" with accessory wheel basket sold separately
• Bike Spacing: 12" (305mm)
• Maximum Wheelbase: 53" (1350mm)

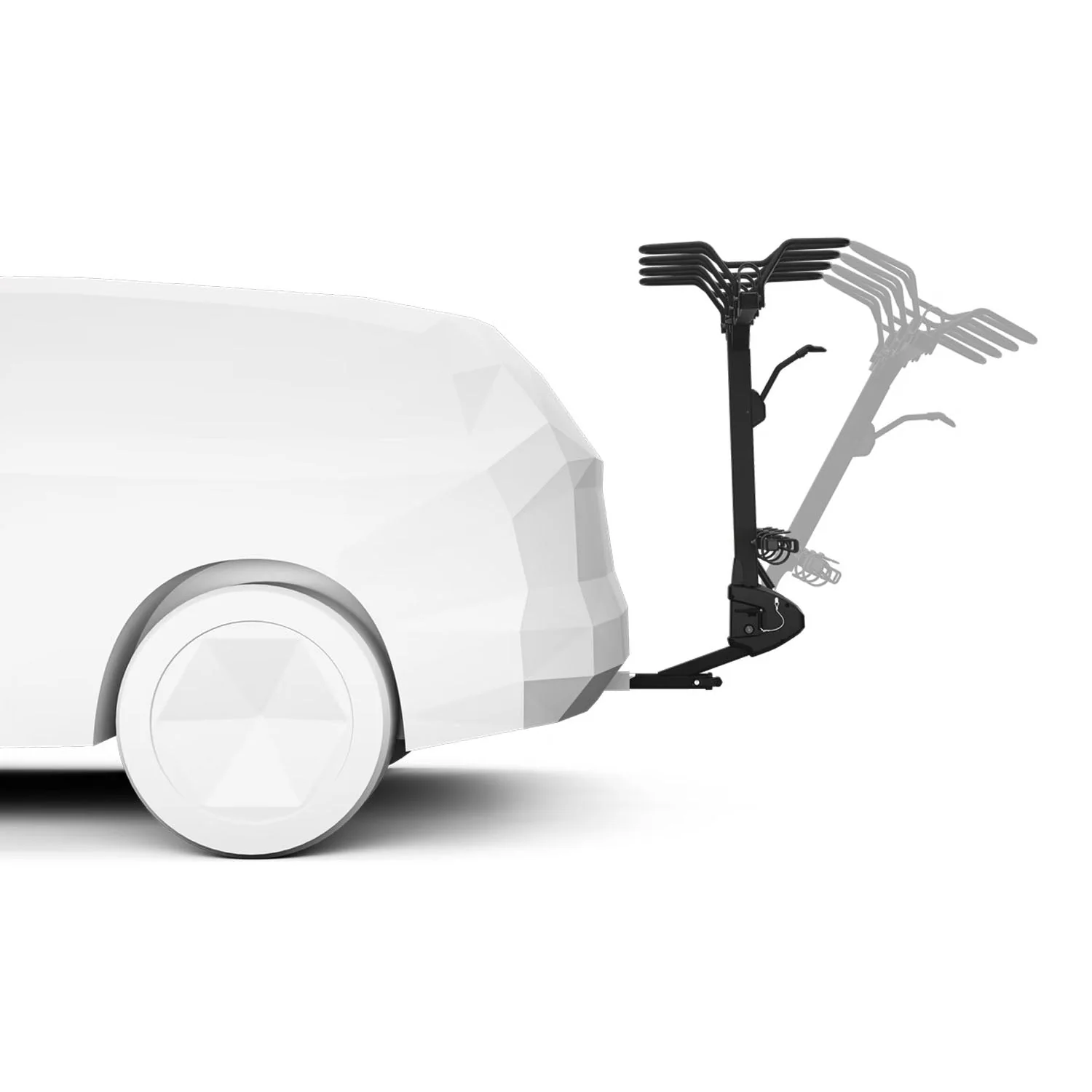

• Tilt System: Dual direction TiltAssist hydraulic damper with memory function and accessible tilt release handle
• Loading System: Roll in and roll out wheel baskets with limited to no lifting required
• Frame Protection: Rubber contact points prevent frame or fork contact
• Wheel Straps: Resilient wheel straps secure tires up to 3"
• Rack Security: Integrated hitch bike lock secures the rack to the vehicle
• Mounting System: Tool-free AutoAttach system with easy grip lever for quick installation and removal
• Construction: Solid steel construction tested to Thule Test Center standards
• RV Compatibility: Approved for motorized RV travel with 40% load reduction guideline
