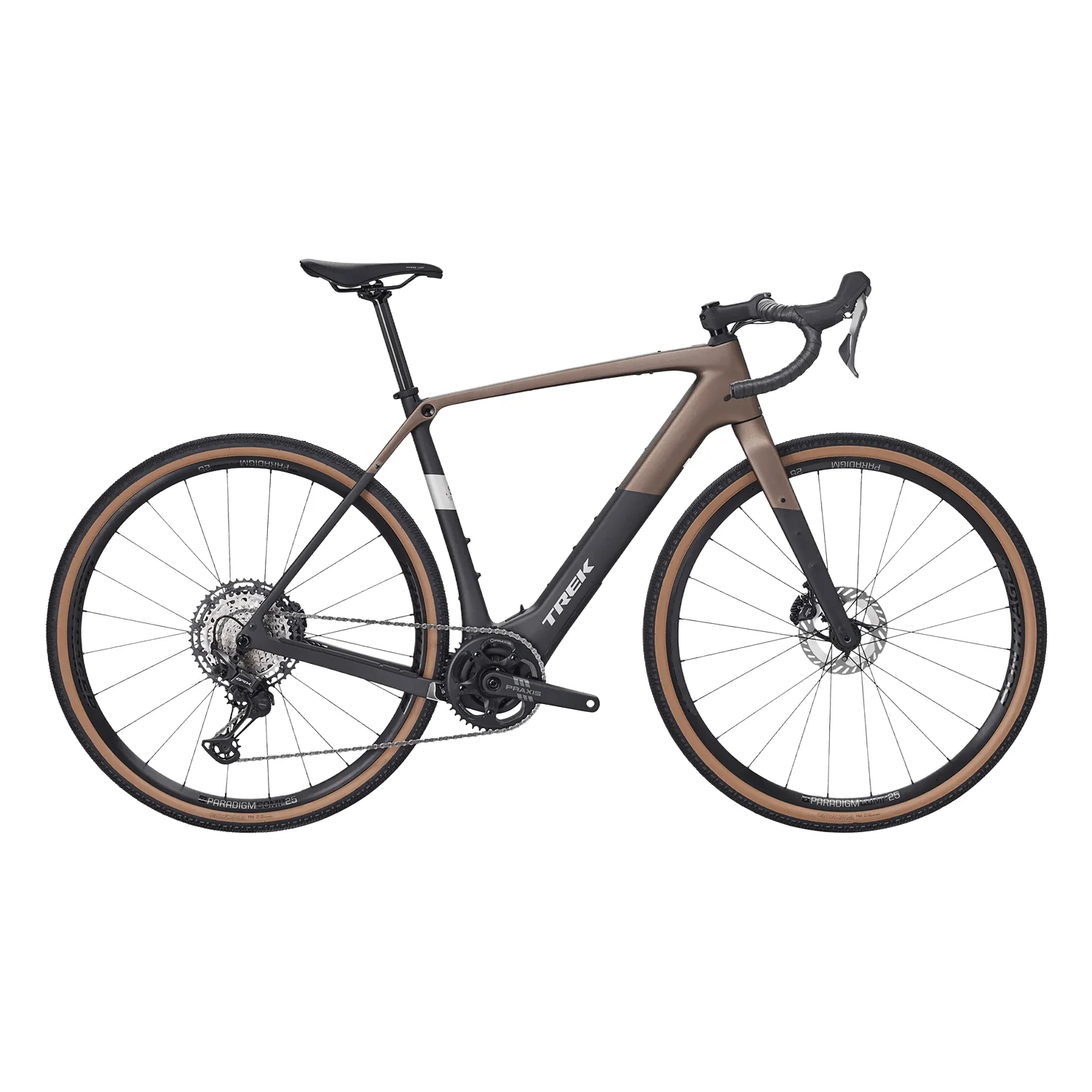

Trek Checkpoint+ SL 5 Bike 2026 Matte Bronze Age/Dark Web

Get ready to stretch your rides with the Checkpoint+ SL 5, blending smooth e-assist with gravel-ready confidence for all-day adventures on mixed terrain.

From Trek, this electric gravel platform pairs the TQ HPR60 system with a 360Wh battery for natural-feeling assist up to 32 km/h, while the OCLV Carbon frame, IsoSpeed, and 12-speed Shimano GRX 1x drivetrain keep power transfer efficient and fatigue low on long, loaded days.

Key Features

• Battery Capacity: 360Wh
• Motor Torque: 60 Nm
• Motor Power: 250W continuous, 350W peak
• Assist Speed Limit: 32 km/h
• Range (Eco Mode): 80 km
• Max Tire Size: 50mm without fenders, 42mm with fenders (as measured)
• Frame: 500 Series OCLV Carbon frame with IsoSpeed decoupler, internal routing, flat-mount disc brakes, UDH, and integrated TQ drive system
• Fork: Full carbon fork with tapered steerer, flat-mount disc brake, and fender and triple rack mounts
• E-System: TQ HPR60 harmonic pin ring motor with LED display and Bluetooth & ANT+ connectivity
• Drivetrain: Shimano GRX RX820 12-speed shifter and RX822 rear derailleur with Shimano XT M8100 10–51T cassette
• Wheelset: Bontrager Paradigm Comp 25 Tubeless Ready wheels with 25mm internal rim width and Micro Spline rear freehub
• Brakes: Shimano CL800 Center Lock rotors with GRX RX820 hydraulic brake levers
• Geometry: Gravel Endurance geometry designed for a more upright, stable riding position over long distances
• Compliance: IsoSpeed frame decoupler engineered to reduce vibration and road buzz over rough gravel
• Mounting Points: Frame and fork mounts for front and rear racks, fenders, and Adventure frame and triangle bags
• Suspension Compatibility: Compatible with suspension forks up to 40mm travel and dropper posts (except XS size)
• Tire System: Bontrager Girona Pro 700x42mm Tubeless Ready tires with GR puncture protection and 60 tpi casing
