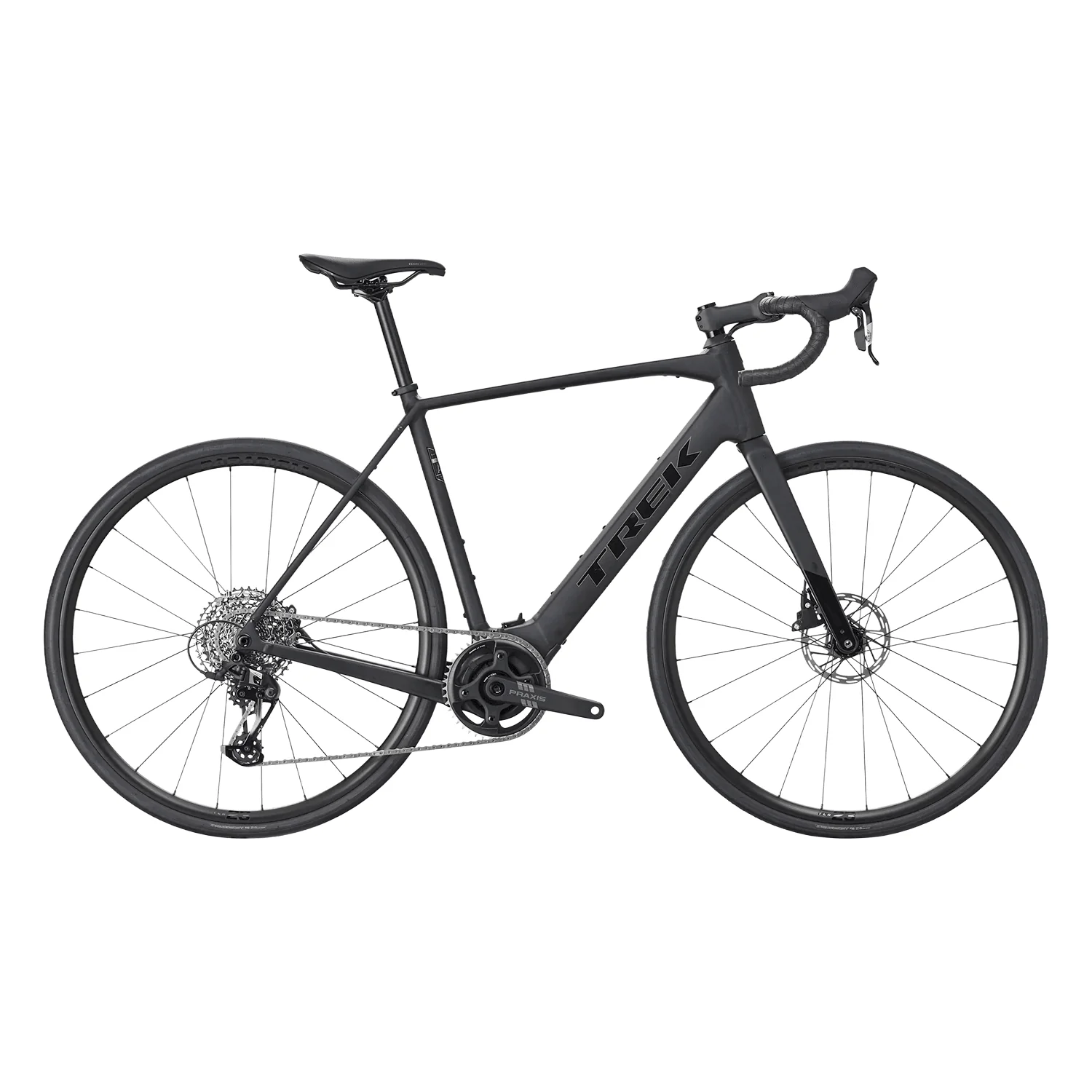

Trek Domane+ ALR 5 Bike 2026 Matte Dark Star

If you’re chasing that smooth, fast, all-day road feel with a little extra push on the climbs, the Domane+ ALR 5 Bike delivers a ride that feels natural, quiet, and seriously fun when the miles start stacking up.

From Trek’s proven endurance platform, the Domane+ ALR 5 Bike pairs the ultra-compact TQ HPR60 drive system with 60 Nm of torque and Class 1 assist up to 28 mph, all wrapped in a lightweight aluminum frame designed to stay stable, efficient, and comfortable over long distances.

Key Features

• Motor Output: 60 Nm torque, 250 W continuous, 350 W peak
• Battery Capacity: 360 Wh
• E-Bike Classification: Class 1
• Max Tire Size: 40mm without fenders, 35mm with fenders
• Frame & Drive System: 300 Series Alpha Aluminum frame with integrated TQ drive system, internal cable routing, UDH compatibility, flat-mount disc brakes, and 142x12mm rear thru axle
• Fork: Domane+ carbon fork with tapered carbon steerer, flat-mount disc brake, fender mounts, and 12x100mm thru axle

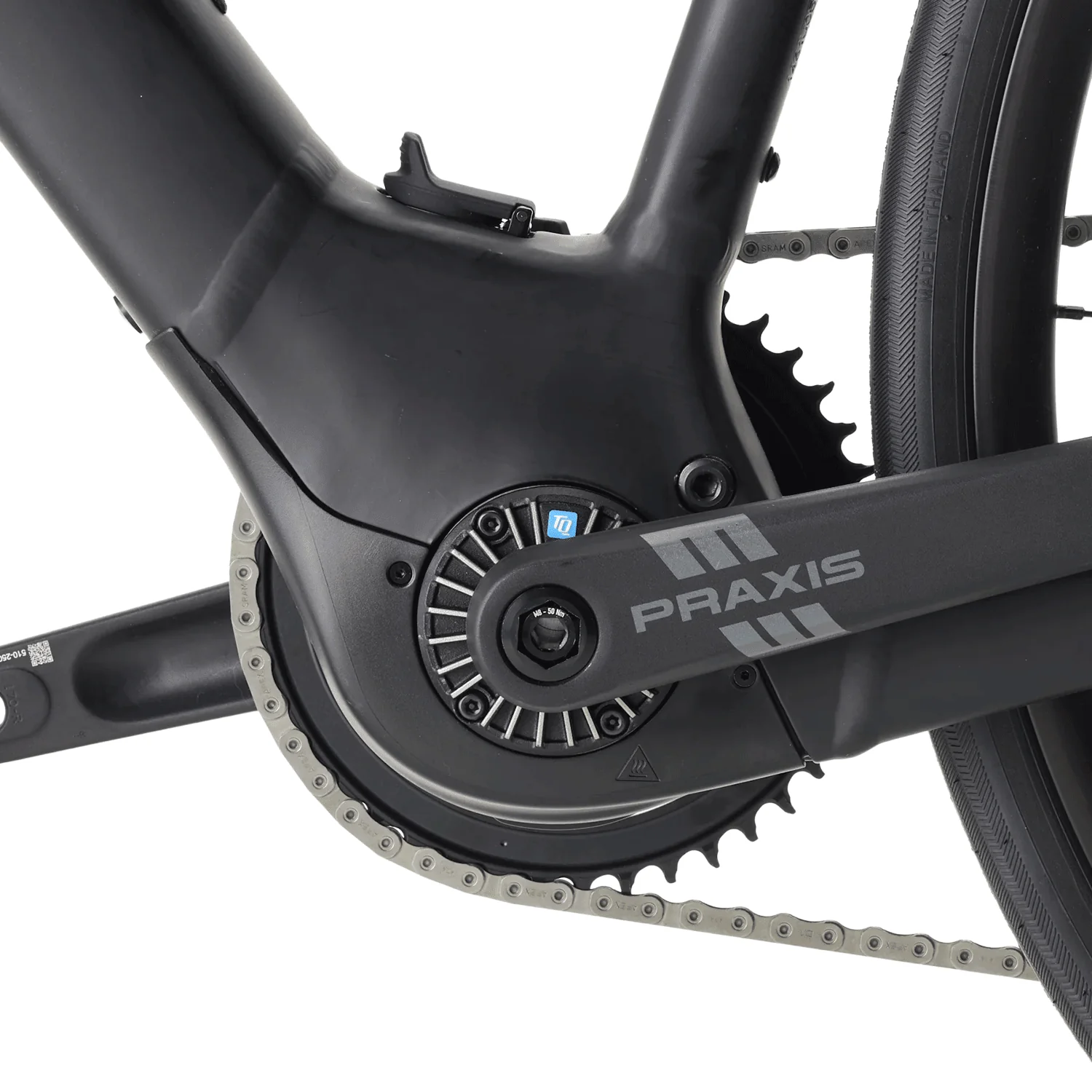

• Motor System: TQ-HPR60 mid-drive motor delivers compact packaging with natural-feeling assist and whisper-quiet operation
• Battery & Charging: Integrated 360 Wh TQ battery with TQ 2A charger for efficient recharging

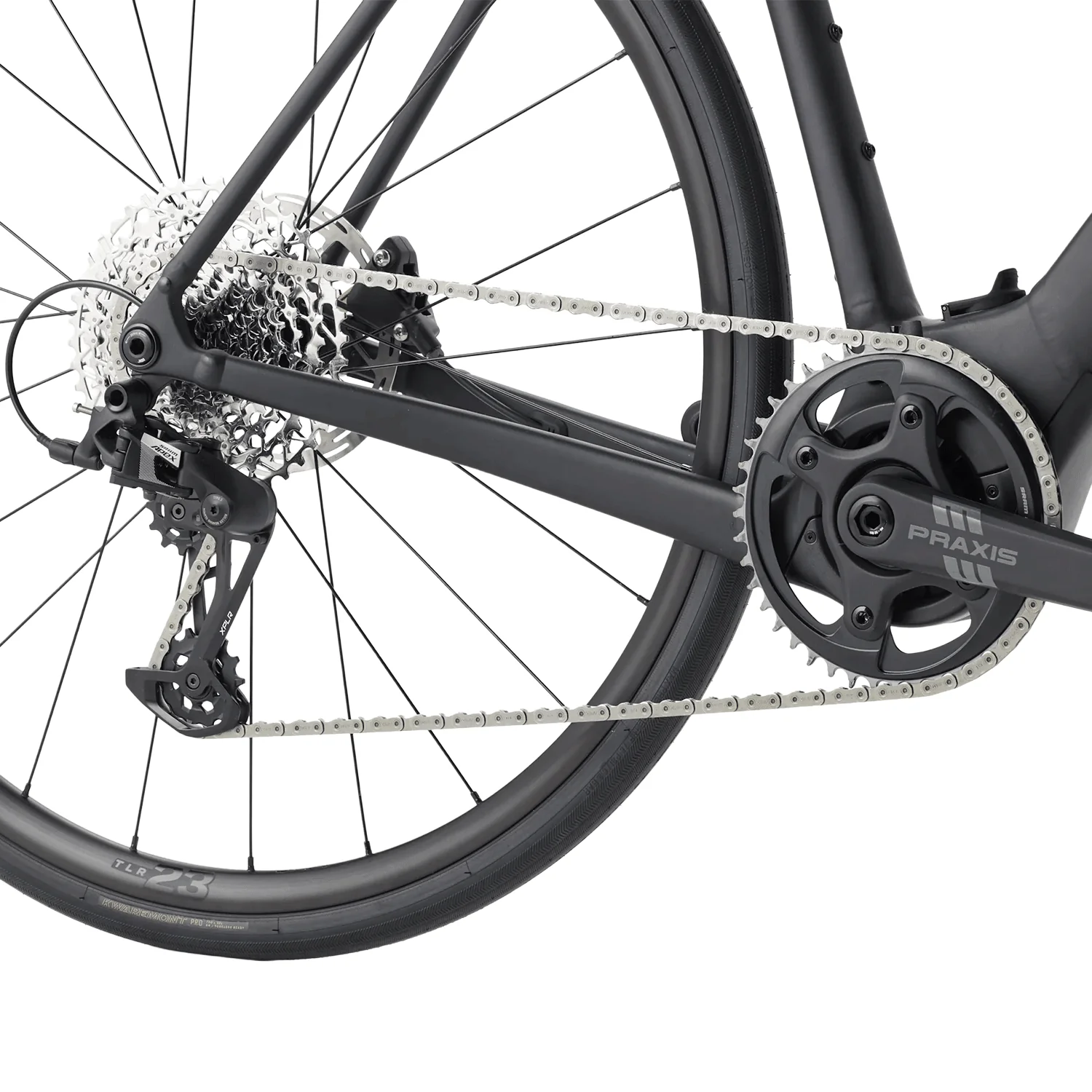

• Drivetrain: SRAM Apex 12-speed with Apex XPLR rear derailleur and 11–44T cassette for wide-range gearing on mixed terrain
• Braking System: SRAM Apex D1 hydraulic disc brakes with 160mm centerlock rotors front and rear
• Wheel & Tire System: Bontrager Paradigm 23 Tubeless Ready rims paired with Bontrager Kwaremont Pro GR 700x32mm tires and TLR sealant
• Endurance Geometry: Road Endurance geometry with stable handling and a more upright rider position for long-distance comfort
• Mounting Options: Integrated mounts for frame bag, rack, fenders, and water bottles for commuting or long-haul rides

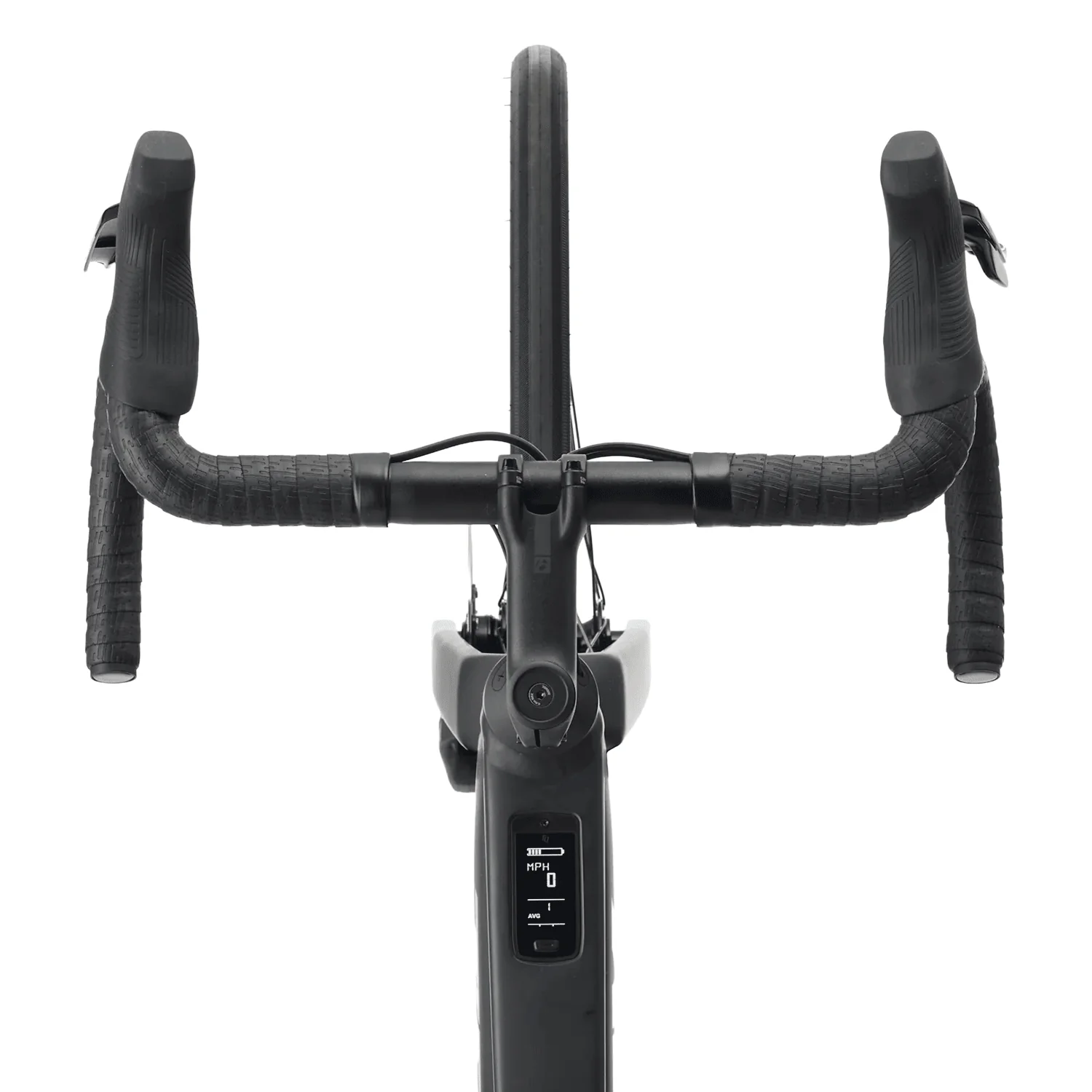

• Connectivity: TQ color LED display with Bluetooth & ANT+ connectivity for system control and ride data integration
