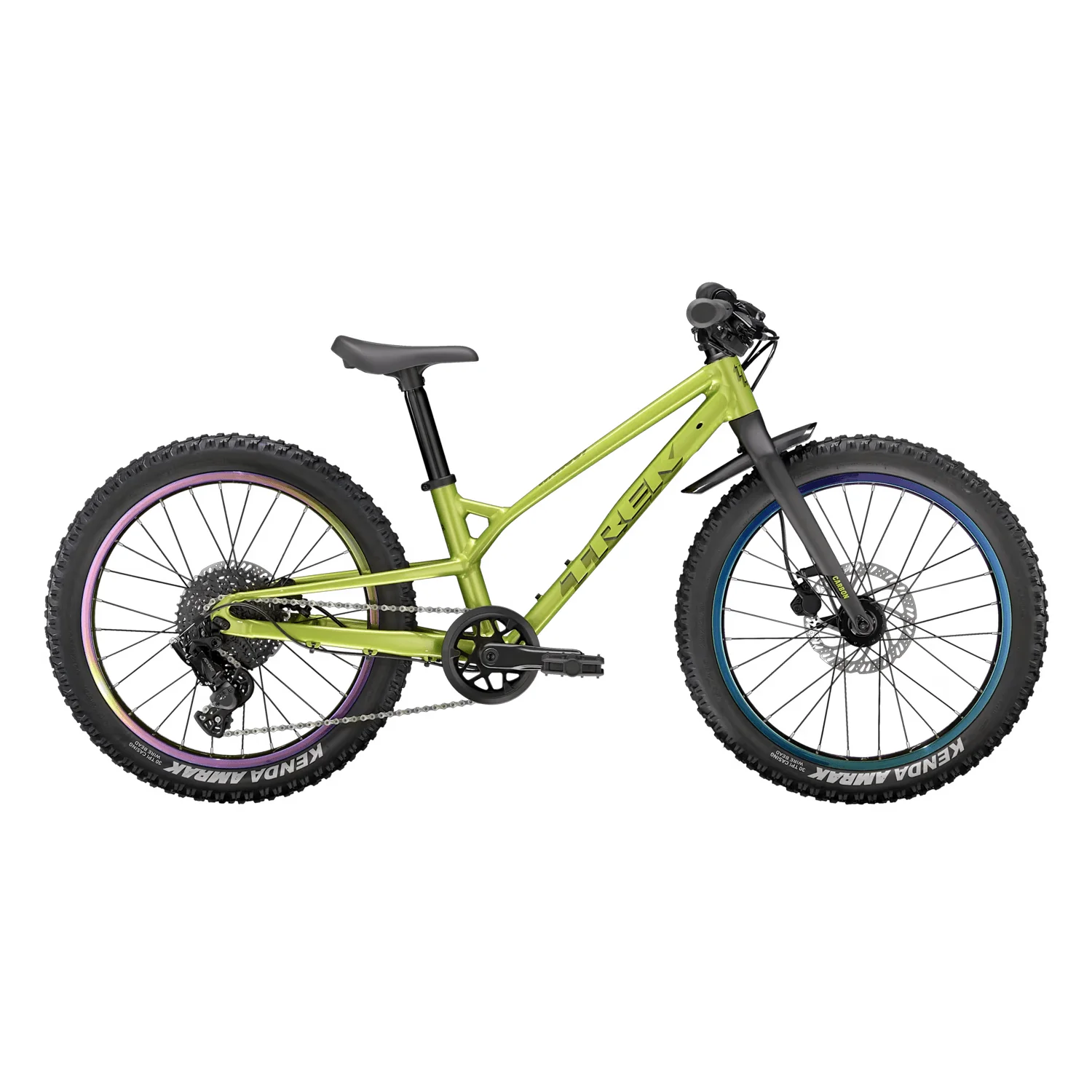

Trek Kids Wahoo Trail 20" Bike 2025 Power Surge

Built for young riders ready to explore singletrack, the Trek Wahoo 20 Trail pairs a lightweight Alpha Silver Aluminum frame with a carbon fork and trail-ready 20x2.20" Kenda Amrak tires. The 9-speed microSHIFT drivetrain and Tektro hydraulic disc brakes provide confident shifting and braking performance across varied terrain. With kid-specific touchpoints, integrated light mounts, and a total weight under 22 lbs, it’s optimized for control, comfort, and off-road capability.

Specs

Frame	Alpha Silver Aluminum, 20''
Fork	Wahoo 20'' carbon, post mount disc brake, ThruSkew 5mm QR
Hub front	Formula DC-20, alloy, 6-bolt, 100mm ThruSkew
Skewer front	135x5mm bolt-on
Hub rear	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Skewer rear	169x5mm bolt-on
Rim	Alloy 20'', 28h
Spokes	14g stainless steel, black
Tire	Kenda Amrak, 30 tpi, 20x2.20''
Max tire size	2.40" with or without fenders
Shifter	microSHIFT Advent Quick Trigger Pro SL-M6295, 9 speed
Rear derailleur	microSHIFT Advent RD-M6195S, 34-38T max cog
Crank	ProWheel alloy, 30T narrow-wide ring, 115mm length
Bottom bracket	Sealed cartridge, 68mm
Cassette	microSHIFT Advent H093, 11-38, 9 speed
Chain	KMC X9
Pedal	VP-225 nylon platform
Saddle	Kids' padded, integrated seatpost, Blendr light mount, 31.6x230mm
Handlebar	Bontrager alloy, 31.8mm clamp, 20mm rise, 580mm width
Grips	Kids' grip, 110mm width
Stem	Bontrager alloy, 31.8mm clamp, 6 degree, 45mm length
Headset	Integrated, sealed cartridge bearings
Brake	Tektro HD-J285 hydraulic disc, short reach
Brake rotor	Tektro, 6-bolt, 160mm
Rotor size	Max brake rotor sizes: 160mm front & rear
Fender	Trek custom
Weight	9.80 kg / 21.61 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 80 pounds (36 kg).

Information provided by manufacturer
