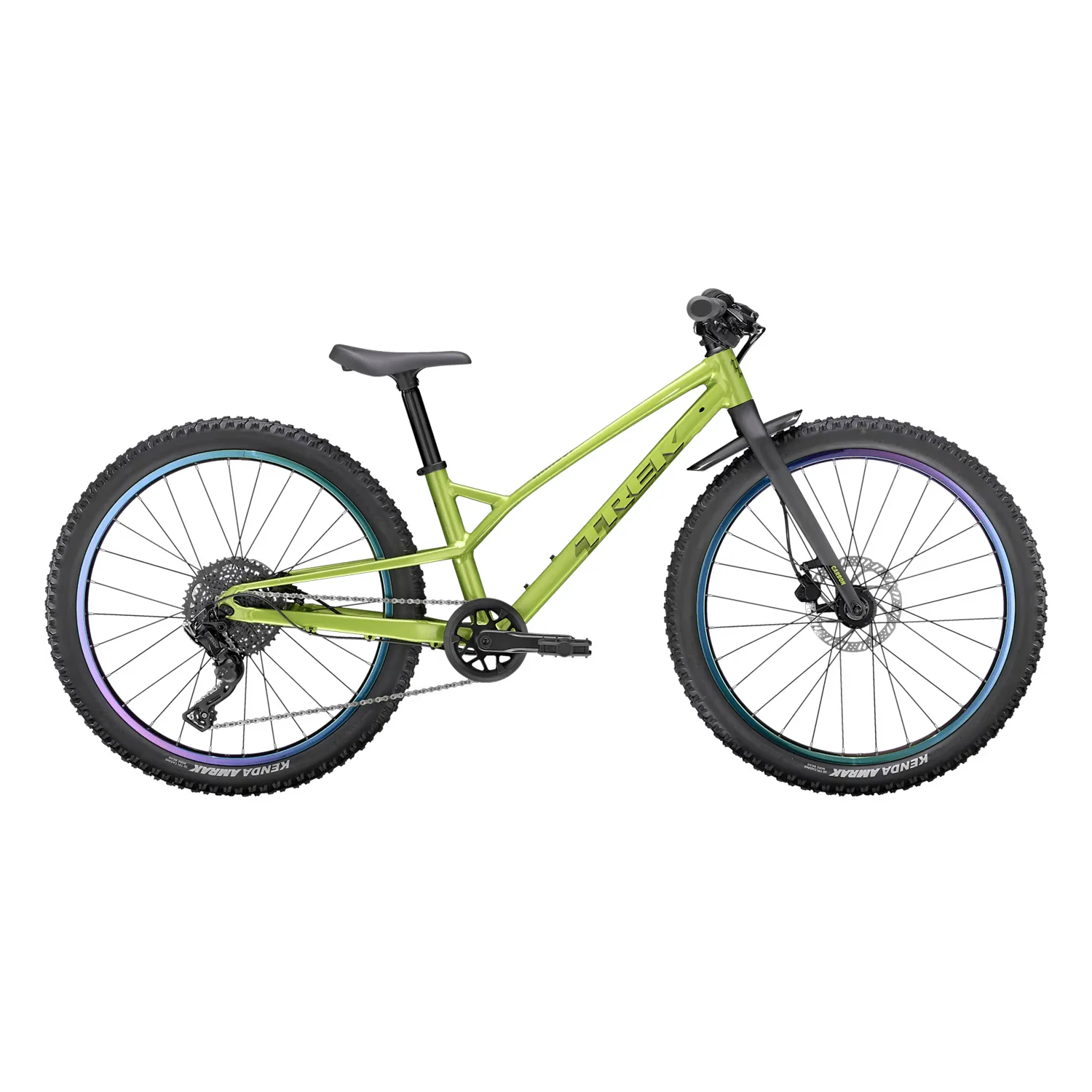

Trek Kids Wahoo Trail 24" Bike 2025 Power Surge

Built for confident off-road exploration, the Trek Wahoo 24 Trail combines a lightweight Alpha Silver Aluminum frame with a carbon fork and wide 24x2.20" Kenda tires for responsive handling across uneven terrain. The 9-speed microSHIFT drivetrain and powerful Tektro hydraulic disc brakes deliver precise gear changes and controlled braking for young riders pushing their limits. Sized for kids 51–59" tall, it’s a capable trail-ready platform engineered to keep pace with growing skills.

Specs

Frame	Alpha Silver Aluminum, 24''
Fork	Wahoo 24'' carbon, post mount disc brake, ThruSkew 5mm QR
Hub front	Formula DC-20, alloy, 6-bolt, 100mm ThruSkew
Skewer front	135x5mm bolt-on
Hub rear	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Skewer rear	169x5mm bolt-on
Rim	Alloy 24'', 28h
Spokes	14g stainless steel, black
Tire	Kenda Amrak, 30 tpi, 24x2.20''
Max tire size	2.40" with or without fenders
Shifter	microSHIFT Advent Quick Trigger Pro SL-M6295, 9 speed
Rear derailleur	microSHIFT Advent RD-M6195M, 40-46T max cog
Crank	Alloy, 30T steel chain ring w/ guard. 127mm length
Bottom bracket	Sealed cartridge, 68mm
Cassette	microSHIFT Advent H093, 11-42, 9 speed
Chain	KMC X9
Pedal	VP-225 nylon platform
Saddle	Kids' padded, integrated seatpost, Blendr light mount, 31.6x270mm
Handlebar	Bontrager alloy, 31.8mm clamp, 20mm rise, 600mm width
Grips	Kids' grip, 110mm width
Stem	Bontrager alloy, 31.8mm clamp, 6 degree, 45mm length
Headset	Integrated, sealed cartridge bearings
Brake	Tektro HD-J285 hydraulic disc, short reach
Brake rotor	Tektro, 6-bolt, 160mm
Rotor size	Max brake rotor sizes: 160mm front & rear
Fender	Trek custom
Weight	10.70 kg / 23.59 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 175 pounds (80 kg).

Information provided by manufacturer
